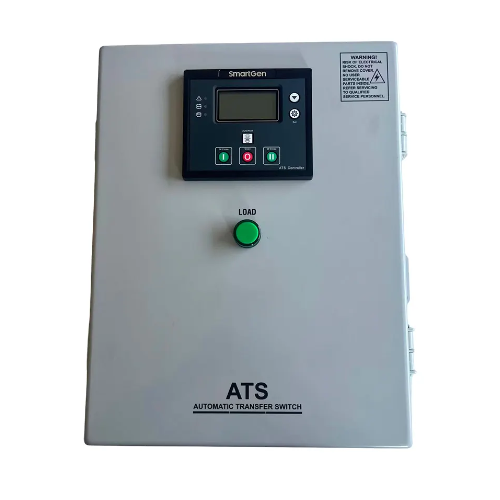

Ensure uninterrupted power supply with this high-quality Automatic Transfer Switch (ATS). Designed for reliability and safety, it automatically transfers the load between mains power and your generator during an outage, keeping your home or business running without interruption. Ideal for backup power systems, residential properties, small businesses, and critical applications where continuous power is essential.

• 80A Capacity – Built to handle demanding single-phase applications
• 240V / 50Hz – Perfect for Australian power standards
• 2-Pole Design – Provides safe and reliable switching
• Automatic Operation – No manual intervention required during power loss

Specifications

• 240V/50hz
• Capacity of up to 80 Amps
• 2 Pole
• Fully Automatic
• Pre Programmed Plug & Play
• Dimensions (LxWxH) - 700 x 500 x 250mm
• Auto & Manual Operation
• Suits most generators with an Auto Start Feature
• IP66 Rated Enclosure

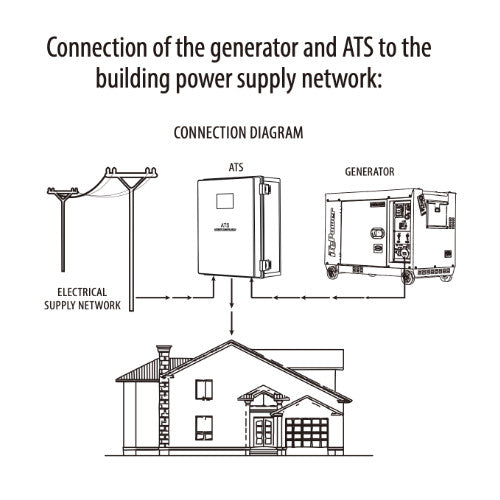

This ATS unit automatically starts the generator and switches over power consumers to it when the main power supply is deenergized. When the ATS terminals are disconnected from the main power supply, the ATS unit checks within 12 seconds (time can be programmed) whether there is voltage. If the power supply is not restored, the ATS starts the generator, warms up the engine for 6 seconds (time can be programmed) and supplies power from the generator to power consumers. When the main power supply is restored, the ATS unit switches over power consumers to the main power supply, and the generator remains operational under no-load condition for another 12 seconds (time can be programmed) to cool the engine and the alternator in order to protect the generator from overheating and deformation.
